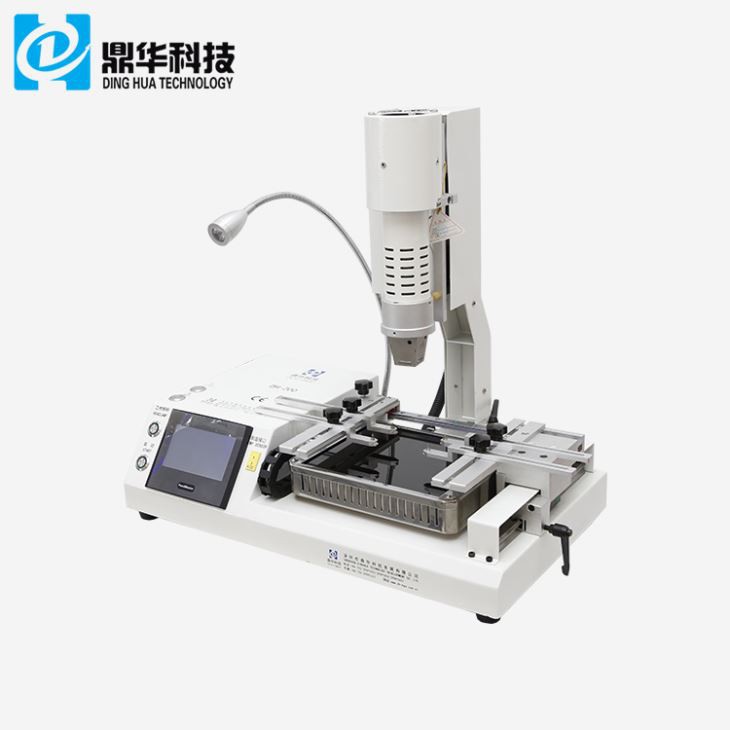

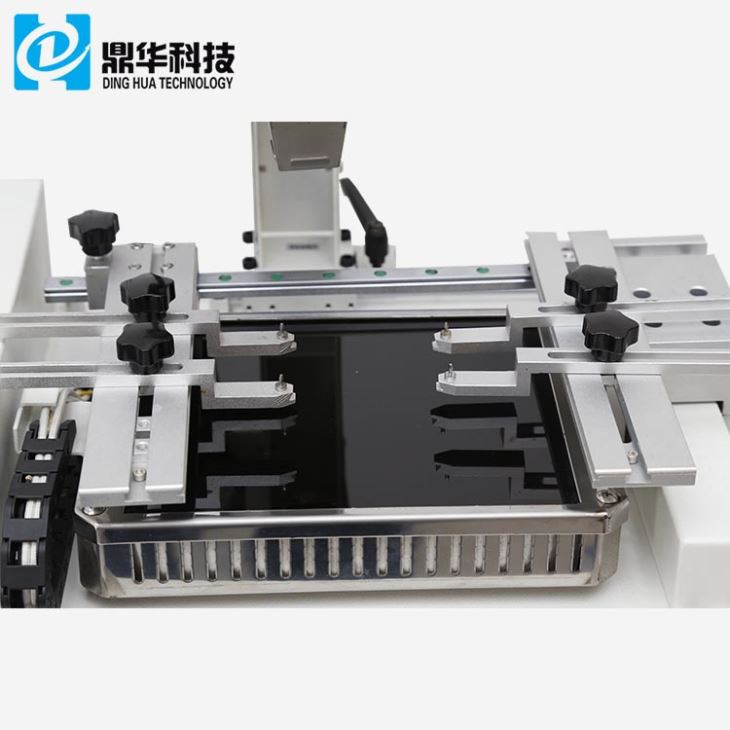

Touch Screen Samsung BGA Rework Machine

                                                                                      Touch screen iphone bga rework machine

Quick preview:

Promotional price! Touch screen DH-200 BGA Rework Machine for Samsung repairing is now in stock.It is specially

designed for smaller size product like smartphone, mobilephone and so on. It can replace BGA chip’s size from 2*2

to 80*80mm.

1.Specification

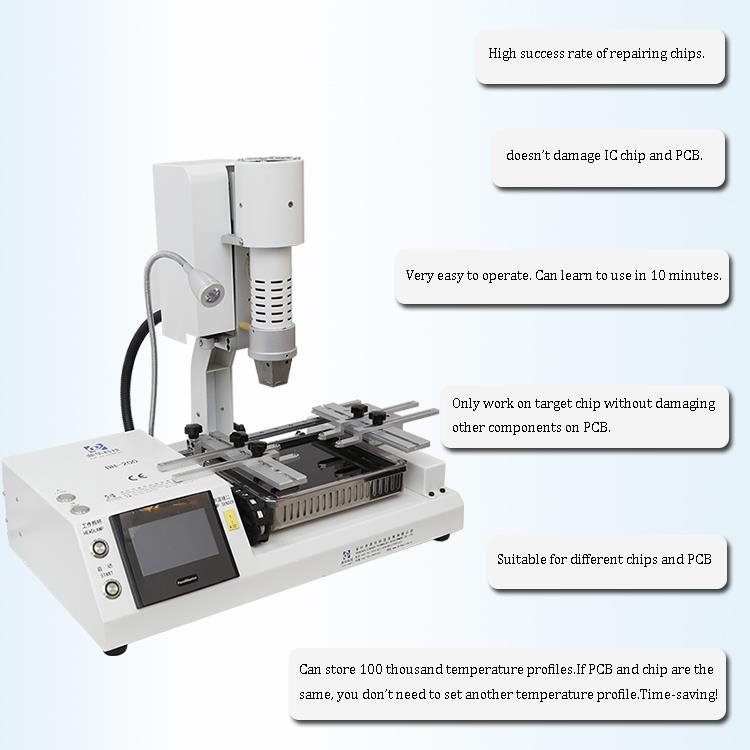

2. Main features of the DH-200 BGA rework station

1. Precise temperature control. Target chip can be soldered or desoldered while no other components on PCB are

2. damaged.

3.


(1)No false welding or fake welding.

(2)The frequency of one PID value running in one cycle is about 10 milliseconds while one cycle time of one PID value

 of our competitors is about 40-60 milliseconds. The faster it captures the frequency, the more precise its temperature

 control is.

(3)The hot air nozzle is made of Titanium alloy without being rusted, out of shape or discolored. When a temperature is

too high for the chip, backflow tank design makes hot air reflux to ensure that the bridge will not be detonated, and the

peripheral components will not be damaged at the same time.

2.The humanized design makes the machine easy to operate. Normally a worker can learn to use it in 10 minutes. No sp-

ecial professional experiences or skills are needed, which is time- and energy-saving for your company.

3.Suitable for various types of PCB of any size.

4. Superior materials guarantee a long life span. Built-in, upper and bottom cooling fan cools the machine automatically

as soon as heating process is finished, which effectively avoids deterioration and aging of machine.3-year warranty for

the heating system is offered.

3. Why you should choose DH-200 BGA rework station?

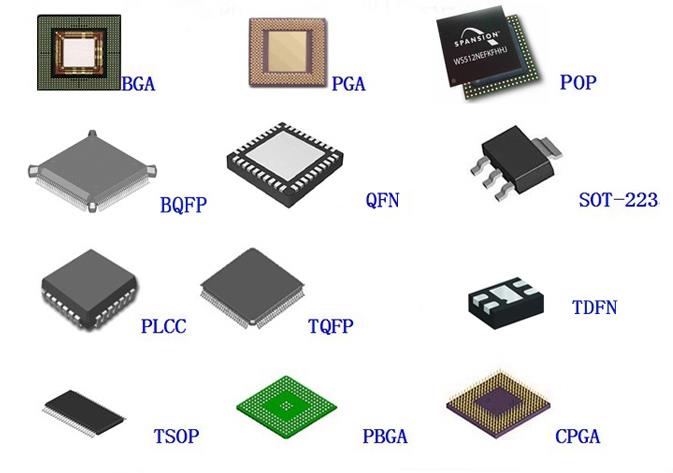

The best advantages of DH-200 BGA rework station is its adaptability to all kinds of IC. Buying one machine and you

can get the repairing well done.

4. Related Knowledge：

Q: How do I select between leaded curves and lead-free curves if I want to weld the reballed BGA chip?

A: Use lead-free curve if you used lead-free solder balls while reballing, otherwise use the leaded curve.

Q: For preheating, is that means I switch on the machine to start preheating? Or should I let the machine warm

up first?

A: If you do not press start, preheating will not work. Preheating is performed synchronously with heating in the

upper and lower temperature zones.

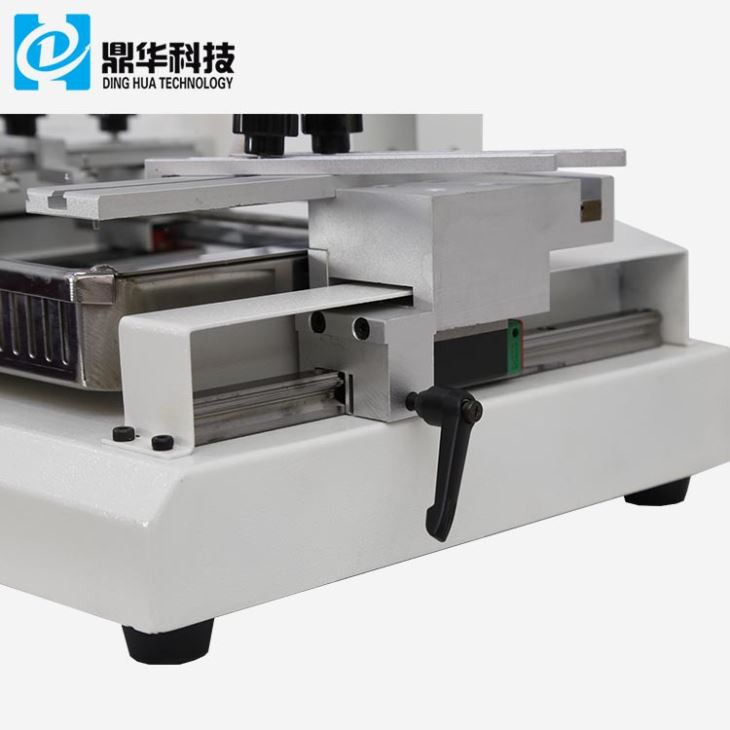

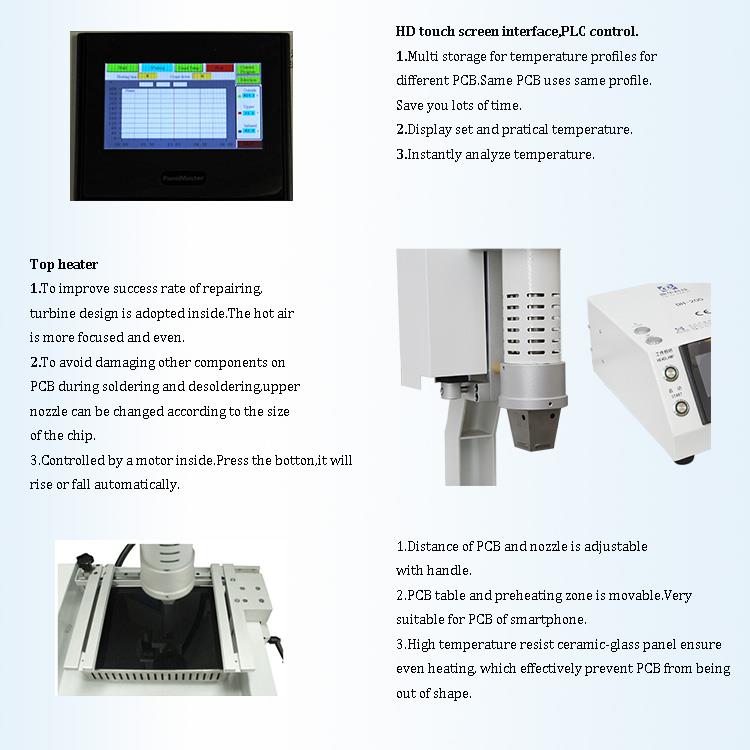

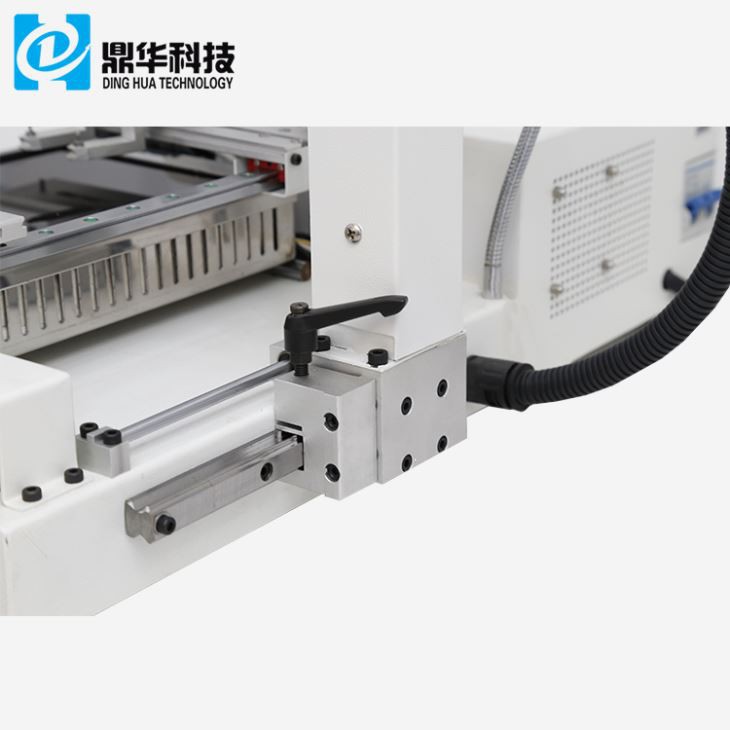

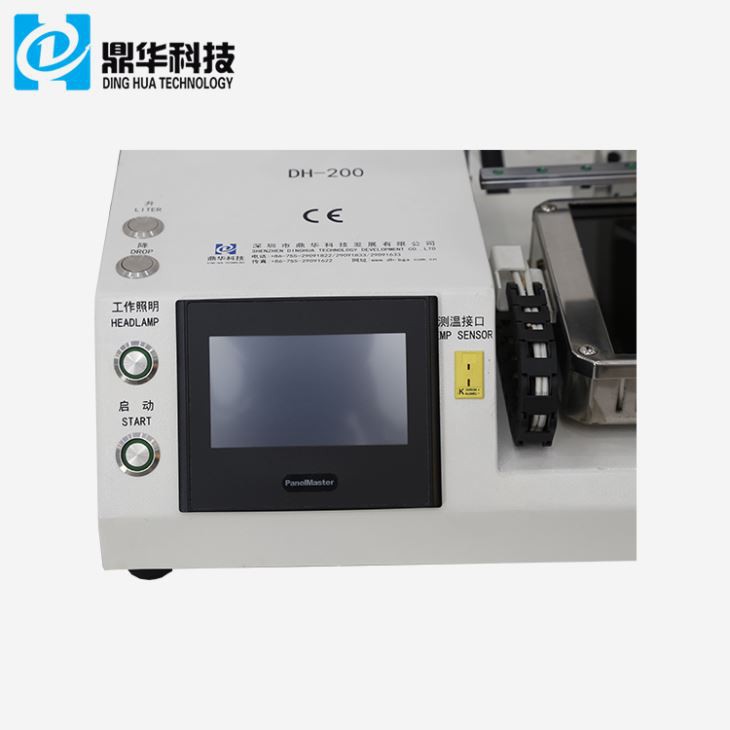

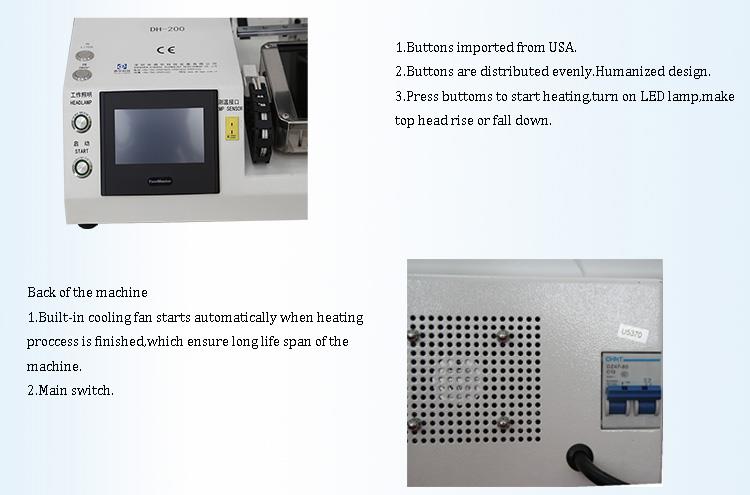

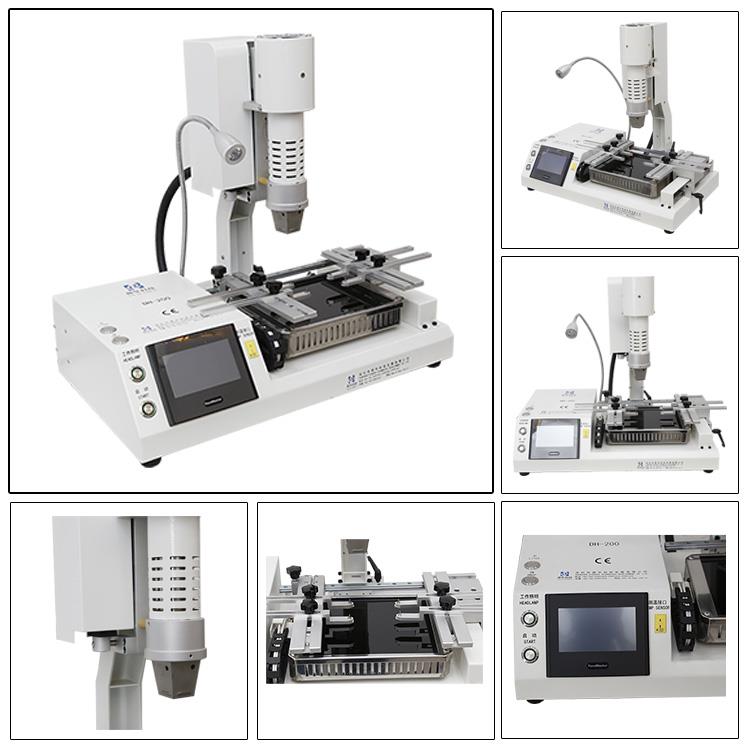

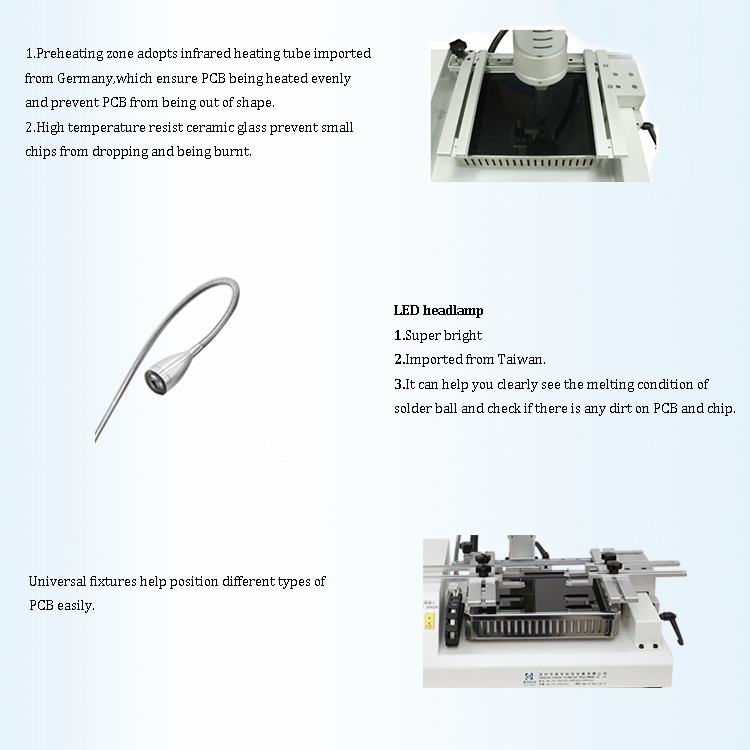

5.Detailed Images of DH-200 BGA REWORK STATION

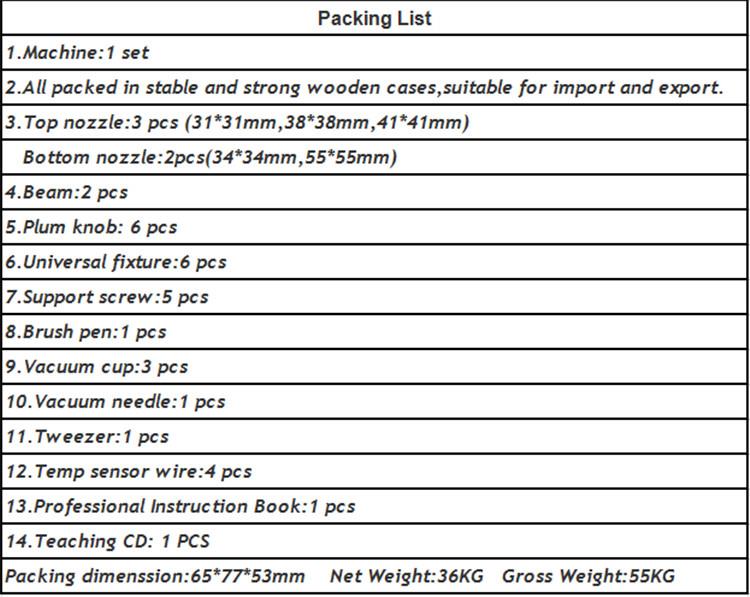

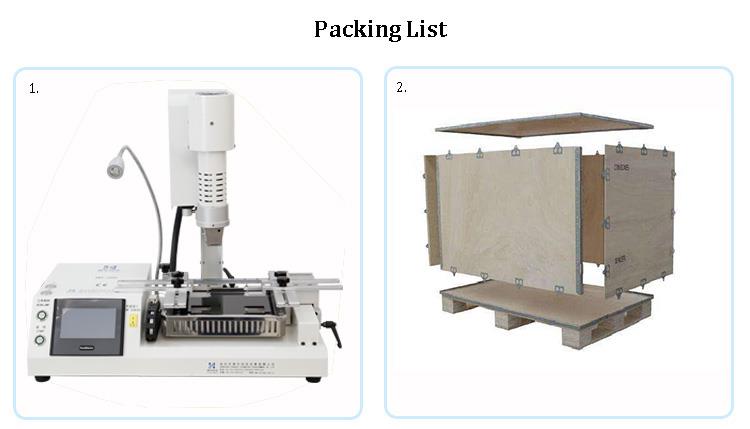

6.Packing & delivery details of DH-200 BGA REWORK STATION

Delivery details of DH-200 BGA REWORK STATION

7.FAQ

 Q: How can I buy this machine from you?

 A: A. Consult us about this product online or by e-mail.

 B. Negotiate and confirm the final price, shipping, payment methods and other terms.

 C. Send you the proforma invoice and confirm your order.

 D. Make the payment according to the method put on the proforma invoice.

 E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

 And 100% quality check before shipping.

 F. Send your order by air or by sea.

8.Services

Pre-sales service

*Inquiry and consulting is welcome.30min instant reply.

*Sample testing.

*Visiting our factory

*Free professional training

After-sales service

*Free professional training

*Warranty:3 years for heating system and 1 year for whole machine

*Engineer available to serv machinery overseas.
